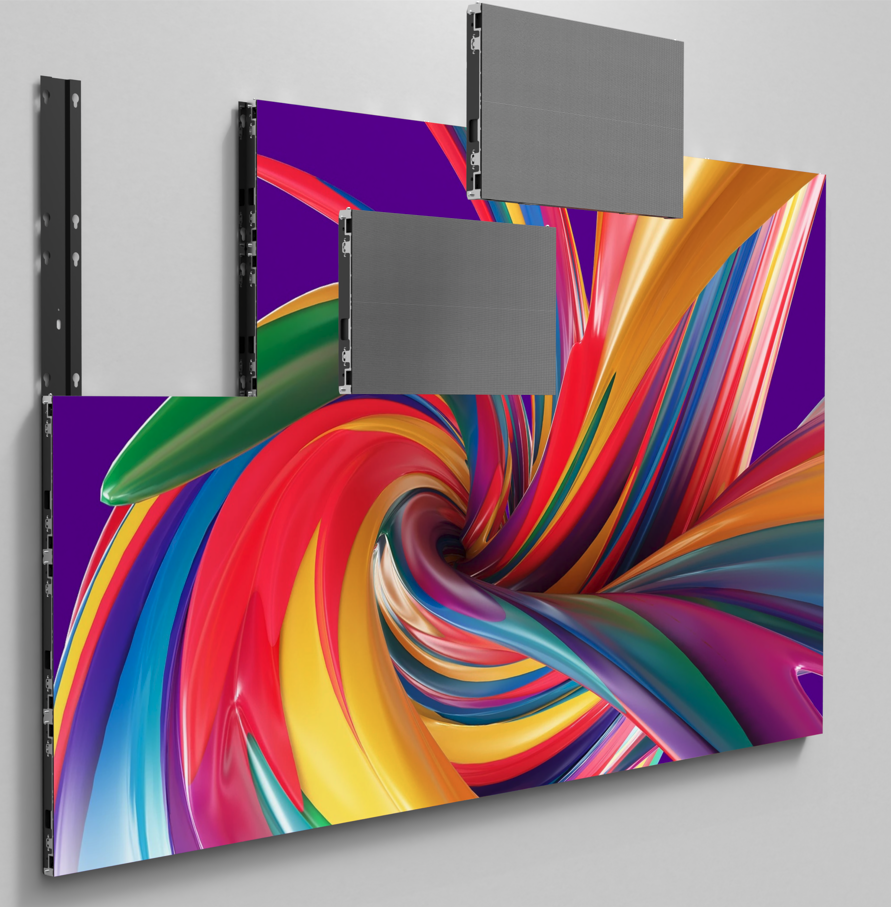

ADisplay LED P1.56 300x168cm

ADisplay 136" LED P1.56 300x168cm.
Komplet LED skærm med alt hvad der skal benyttes. Absolut højeste kvalitet og nem at montere og betjene. Service fra fronten.
Novastar TU15 Pro controller
Module Specifications
Pixel pitch1.5625 mm
LedsSMD1212
Module pixels192 × 108 pixels
Module size300 × 168.75 mm size
Cabinet Specification
Cabinet size600 × 337.5 × 41mm
Cabinet pixels384 × 216 dots
Module qty4 pcs
Pixel Density409600 dots/m2
Cabinet materialsDie-casting Aluminum
Cabinet weight4.5 KG/cabinet
Screen Parameters
Screen sizeW3.6m×H1.6875m=6.075 SQM
Screen Pixels1920×1080
Cabinet qtyW5pcs×H5pcs=25 pcs
Brightness800 nits
Viewing Angle ( H/V )Horizontal`160° Vertical 160°
View distance>1m
Gray level14 bit
Refresh rate≥3840  hz
Frequence50- 60Hz
InputAC100-240V
Power comsuptionMax:470W/㎡ Average:160W/㎡
MTBF--hours>10,000 hours
Life--hours≥100,000 hours
contrast ratio≥5000:1
IP ratingfront IP30/ back IP30
Operating Temperature﹣35℃～55℃
Storage Humidity10%～95%
Maintenance methodFront Access
Control  SystemNOVA
