ADisplay LED P3.9 288x192cm IP65

ADisplay LED P3.9 288x192cm IP65
Komplet LED skærm med alt hvad der skal benyttes. Absolut højeste kvalitet og nem at montere og betjene. Service kan foregå fra både front og bagside.
Novastar TB50 medfølger og kan styres enten fra PC eller mobiltelefon.
Option: 4G modul til simkort
Module Specifications
Pixel pitch3.9 mm
LedsSMD1921
module pixels123×82 pixels
Module size480×320×19.5mm
Cabinet Specification
Cabinet size960×960×97mm
Cabinet pixels246×246 dots
Module qty6pcs
Pixel Density65664 dots/cabinet
Cabinet materialsAluminum profile+
Aluminum module backshell
Cabinet weight26KG/cabinet
Screen Parameters
Screen sizeW2.88m×H1.92m =5.5296m²
Screen Pixels738×492
Cabinet qtyW3pcs×H2pcs=6pcs
Brightness6000-6500cd/㎡
View distance≥3m
Gray level14 bit
Refresh rate7680Hz
Frequence50- 60Hz
Input100 -240 V
Power comsuptionMax:650W/㎡   Average:220W/㎡
MTBF--hours>10,000 hours
Life--hours≥100,000 hours
Power supplyCE Power supply

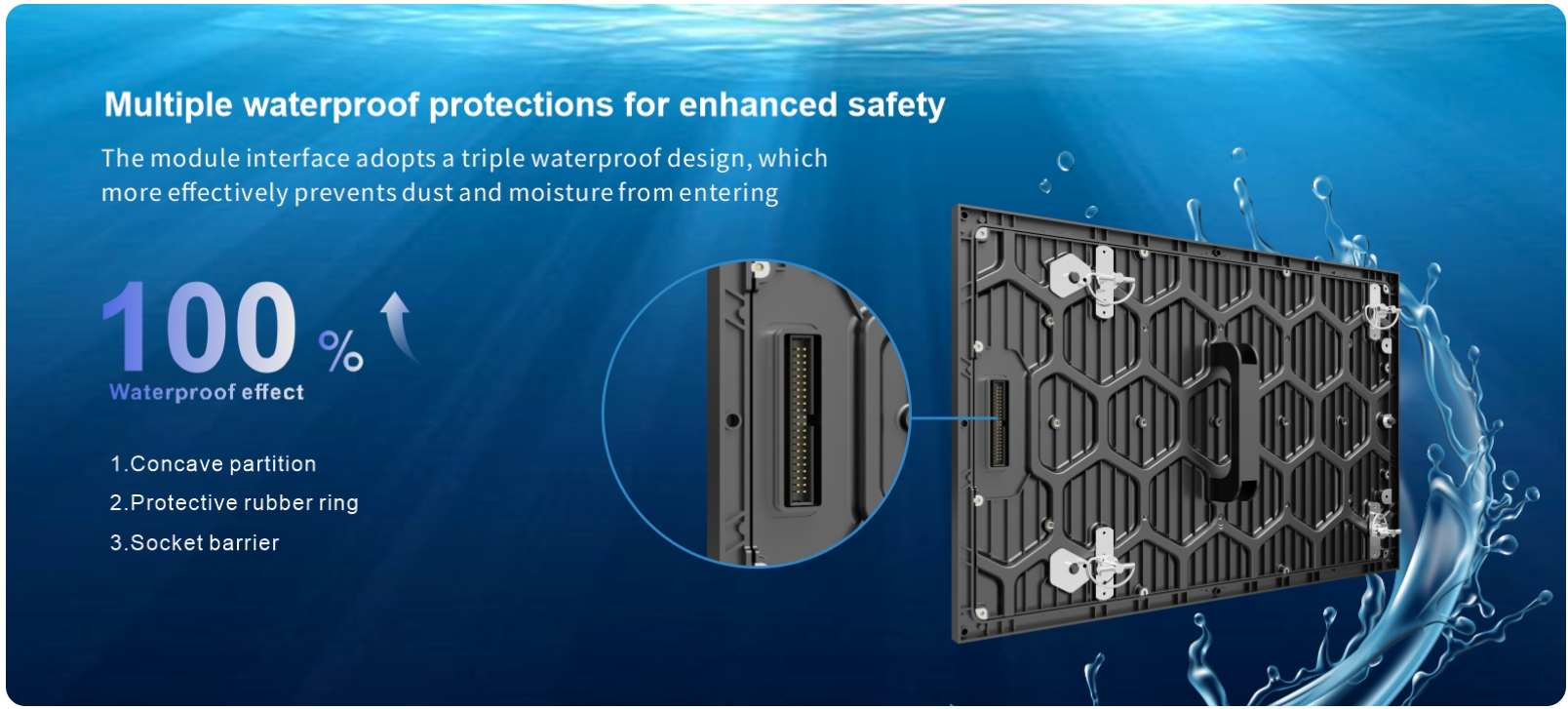

IP ratingIP67/IP65
Operating Temperature﹣20℃～65℃
Storage Humidity10%～95%
Control syetemNOVA

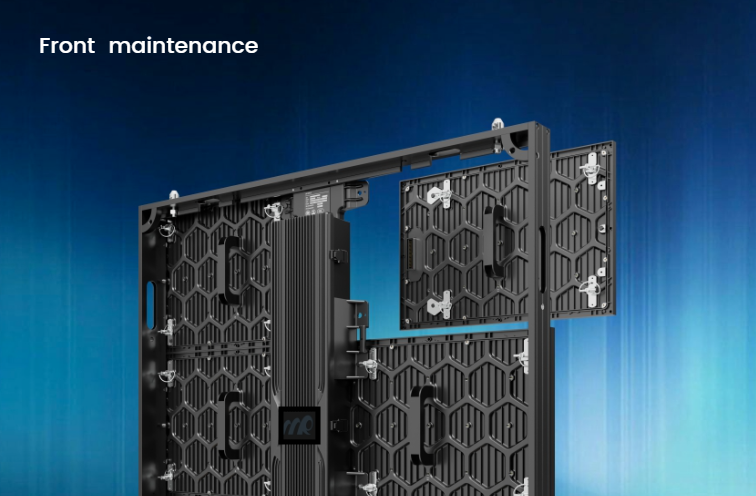

MaintenanceFront maintenance
